- Fitting End Tube Size: (-04) 1/4"
- Thread Type: JIC
- Hose Size: (-04) 1/4"
- Nominal Thread Size: 7/16" 20
- Male Thread O.D.: 7/16" or 0.44"
- Female Thread I.D.:
- M or F: Male
- Fitting Shape: Straight
- Fitting Movement: Rigid
- Material: Steel

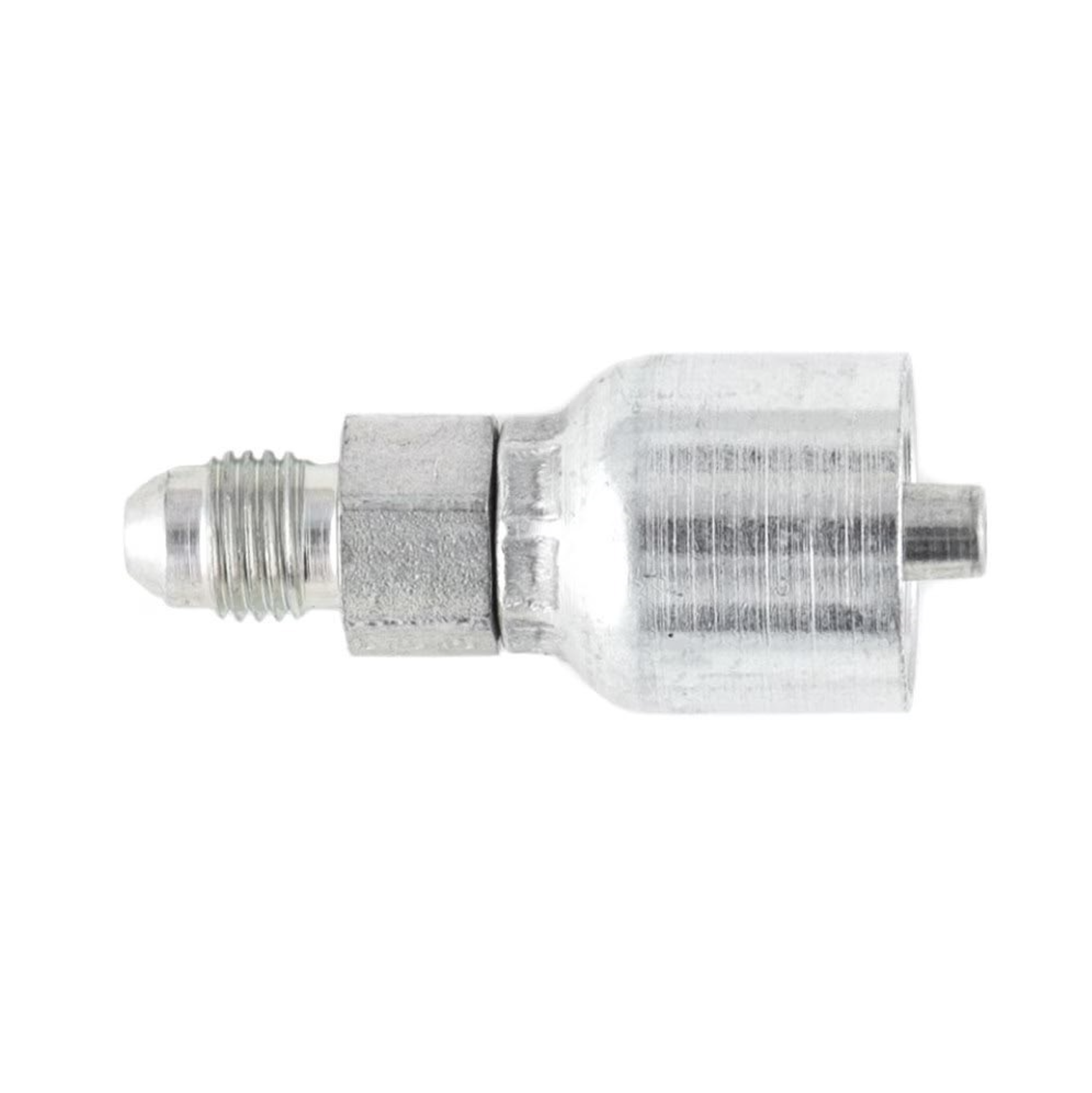

10343-4-4 Parker Crimp Style Hydraulic Hose Fitting - 43 Series Fittings Part
The 43 Series hydraulic hose fittings from Parker Hannifin are celebrated for their ease of assembly, extensive range of shapes and end formations, compatibility with various hoses, and broad market application. These cost-effective, permanent crimp-style hydraulic fittings are designed to work with Parkcrimp crimpers, providing reliable "bite-the-wire" sealing and holding power. When paired with Parker's No-Skive hoses, the 43 Series fittings can be assembled without removing the outer hose cover, preventing premature hose failure from incorrect skiving.
The 43 Series fittings are constructed in one piece with chromium-6-free plating and are compatible with petroleum-based hydraulic fluids, lubricating oils, and phosphate-ester-based hydraulic fluids. They are suitable for various applications including hydraulic industry standards, constant working pressure, high and low temperatures, and suction and return. Available in sizes ranging from ¼-inch to 2 inches, these fittings come in over 2,500 configurations and are accessible worldwide. For environments requiring high corrosion resistance, the 43 Series fittings are also available in stainless steel.
Markets:
- Transportation
- RV & Bus
- Military
- Construction
- Agriculture
- Grounds & Building Maintenance
- Forestry
- Railroad
- Utility Equipment
- Personnel Lift Equipment
- Machine Tool
- Oil Field Service
- Waste & Refuse
- Material Handling
- Marine
- Paving & Road Maintenance
- Ground Support Equipment
- Industrial
- Mining
Features/Benefits:
- Easy push-on force
- Imperial HEX
- Available in stainless steel
- Wide range of end configurations
- One-piece design reduces complexity and potential leakage
- No-Skive technology ensures efficient and safe production processes
Applications:
- Petroleum-based hydraulic fluids and lubricating oils
- Phosphate-ester-based hydraulic fluids
Compatible Hoses:
- 301LT
- 302
- 304
- 351TC, 351ST
- 387/TC/ST (-4 through -20 only)
- 422
- 424
- 426
- 431
- 436
- 451TC, 451ST
- 471TC, 471ST
- 472TC
- 482TC, 482ST
- 487/TC/ST (-4 through -16 only)
- 722/TC/ST
- 787/TC/ST (-4 and -6 only)
- 797/TC/ST (-4 and -6 only)
- 881
- GST II Series 7092
