Product Style: Female JIC 37° - Swivel - Straight
Connection 2 Size: 1-5/16"-12
Product Series: 91N
Shape: Straight
Configuration: Hose to Port
Connection 1 Type: Hose
Connection 1 Size: 7/8 inch Hose I.D., -16 (Size), 22 mm
Connection 2 Type: Female, JIC 37°, Swivel
Connection 2 Size: 1-5/16"-12 inch Thread
Tube Outside Diameter: n/a, n/a
Hex Size: 1-1/4 inch (see drawing legend J)
Hex Size 1: 1-1/2 inch (see drawing legend H)
Product Type: Hose Fittings
Fitting Length: 2.45 inch (see drawing legend A), 62 mm
Connection Length: 1-9/16 inch Cut-off allowance (see drawing legend B), 40 mm
Maximum Operating Pressure: 3000 psi (Dependent on hose), 20.7 MPa, 207 bar
Technology: Fluid & Gas Handling
Brand: Parker
Specifications Met: n/a
For Fluid Type: Hydraulic Fluids, Oil, Pharmaceutical Fluids, Chemicals, Gases, Air (Pneumatic Media), Steam, Water
Body Material: n/a
Coating: n/a
Industry: Transportation, Food & Beverage, General Industrial, Semiconductor, Healthcare & Life Sciences
Hose I.D. (inch): 7/8"
Division: Parflex Division
Application: Chemical Transfer, Fluid Control, Instrumentation, Medical, Ultra High Purity, Hydraulics, General Industrial, Tools & Equipment, Pneumatics, Semiconductor
Length (inch): 2.45"

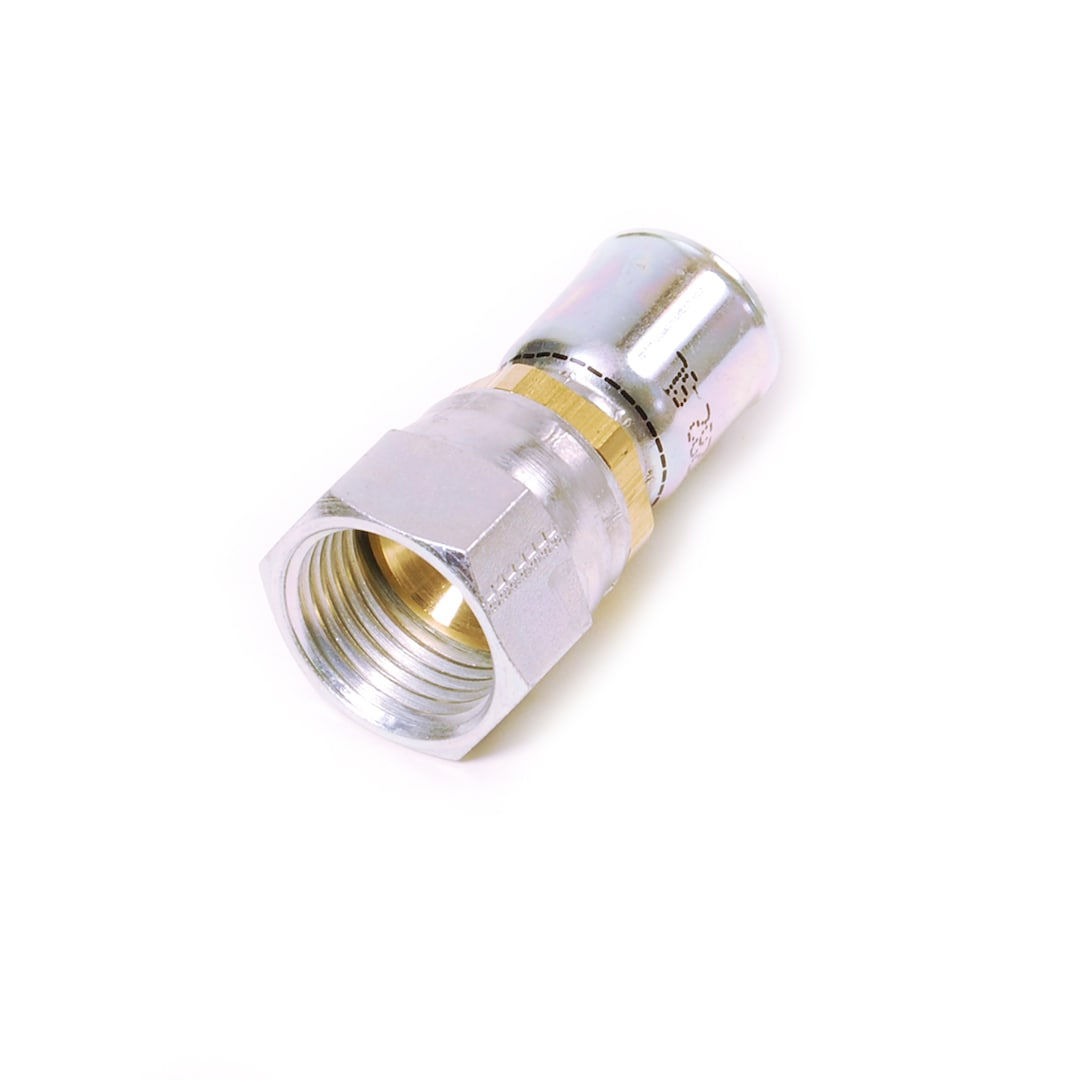

10691N-16-16C Parker Permanent Fittings for PTFE Hose - 91/91N
Parker's 91/91N Series fittings are designed for use with smooth bore, medium-pressure PTFE hoses from the Parflex division. We offer a wide range of crimp fittings for PTFE hoses, including NPT, JIC, and Seal-Lok™ designs, with many available in stainless steel for corrosive environments. These fittings feature a lead-in at the base for easy hose insertion and are compatible with any Parkrimp machine. The crimpers use Parker's exclusive Parkalign® system, which includes a positive-stop design to ensure a perfect crimp every time.
Markets:
- Industrial
- Air & gas compressors
- Packaging machinery
- Printing and marking equipment
Features:
- Lead-in design
- Parkalign® dies
Applications:
- Chemical transfer lines
- General hydraulics
- Compressed air/gases
- Adhesive dispensing
- Coolant lines
